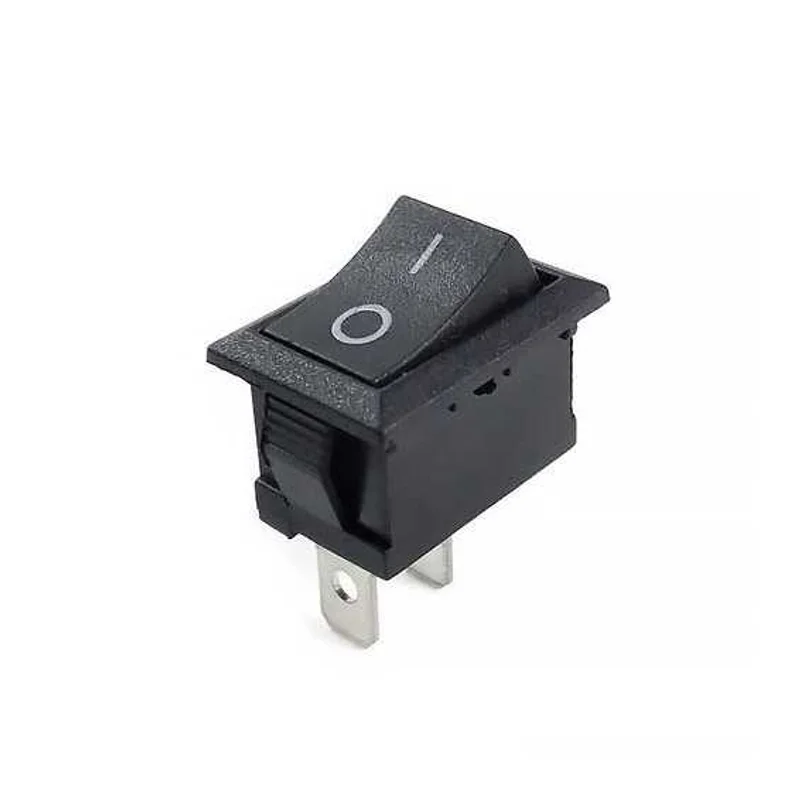

KCD1-11 SPST Switch 230V 3A
Condition: New
10 in stock
| ELBER Part Number | |
| Manufacturer | |
| Descriptions | Rating: 3A 250V AC 6A 125V AC The contact resistance: ≤ 50mΩ Withstand Voltage: 1500V,AC/MIN Insulation Resistance: ≥100mΩ Dielectric intensity: ≥1500V AC/MIN Temperature: -25~85. c Mechanic life: ≥10000times. |
-
Rating: 3A 250V AC 6A 125V AC
-
The contact resistance: ≤ 50mΩ
-
Withstand Voltage: 1500V,AC/MIN
-
Insulation Resistance: ≥100mΩ
-
Dielectric intensity: ≥1500V AC/MIN
-
Temperature: -25~85.c
-
Mechanic life: ≥10000times
Weight
15g
Package Length
15mm
Package Width
10mm
Package Height
14.5mm
Switching Connection Type
SPST
Switch Operation Type
Rocker Switch
Number of Pins
2
Switch Connection
Normaly Close
Rated Voltage
230 V
Switch Operation Method
ON-OFF
Material
ABS
