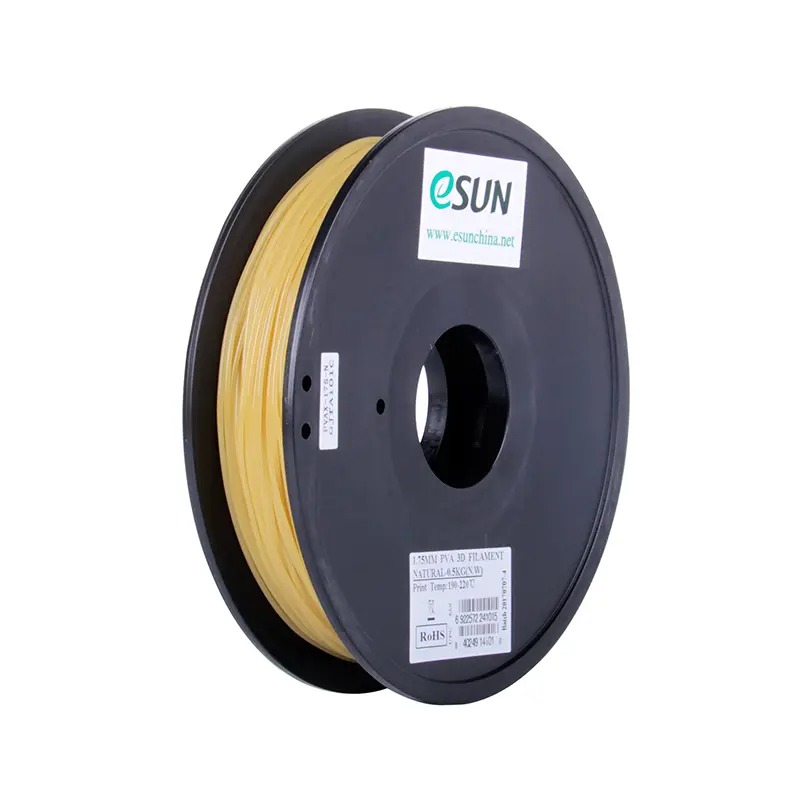

eSUN PVA Water-Soluble Natural 3D Print filament 0.5Kg
eSUN PVA Water-Soluble Natural 3D Print filament 0.5Kg
Condition: New
5 in stock
| ELBER Part Number | |
| Manufacturer | |
| Descriptions | PVA is a water-soluble material that is often used as a support material with no need of adding any chemical and speicial treating. Leave the part in a warm water bath dissolve faster. |
1. Suggest to dry the material before printing (45℃/＞10H) to get perfect printing effect. It is recommended to work with eBOX(3D filament dryer) in printing.
2. It is recommended to set the distance between the support and the model to 0, Slow down and turn off the fan for the first layer to bond well with the main material.
Water soluble.
Support material.
PVA is a water-soluble material that is often used as a support material with no need of adding any chemical and speicial treating. Leave the part in a warm water bath dissolve faster. After dissolution, there is no residue on the model surface with smoothy effect; it can be worked with PLA, TPU, PA(nylon) and other consumables materials to print extremely complex shapes or support materials with a partially closed cavity model. It’s also a good choice to work for multi-nozzle printers.
| Filament Properties Table | |
|---|---|
| 3D PRINTING FILAMENT | PVA |
| Density(g/cm3) | 1.25 |
| Heat Distortion Temp(℃,0.45MPa) | / |
| Melt Flow Index(g/10min) | / |
| Tensile Strength(MPa) | 22 |
| Elongation at Break(%) | 360 |
| Flexural Strength(MPa) | / |
| Flexural Modulus(MPa) | / |
| IZOD Impact Strength(kJ/㎡) | / |
| Durability | 7/10 |
| Printability | 5/10 |
| Recommended printing parameters | |
| Extruder Temperature(℃) | 180 – 230℃ Recommended temperature：190℃ |
| Bed temperature(℃) | 45 – 60°C |
| Fan Speed | 100% |
| Printing Speed | 20 – 50mm/s |
| Heated Bed | Required |
| Recommended Build Surfaces | Masking paper, PEI |
| Feature | |
| Flexible | √ |
| Elastic | —— |
| Impact Resistant | —— |
| Soft | √ |
| Composite | —— |
| UV Resistant | —— |
| Water Resistant | —— |
| Dissolvable | √ |
| Heat Resistant | —— |
| Chemically Resistant | —— |
| Fatigue Resistant | √ |
| Need drying | √ |
| Heated Bed Required | √ |
| Print recommend | Drying at 45℃/>10h, Short-range extruder, slow printing |
