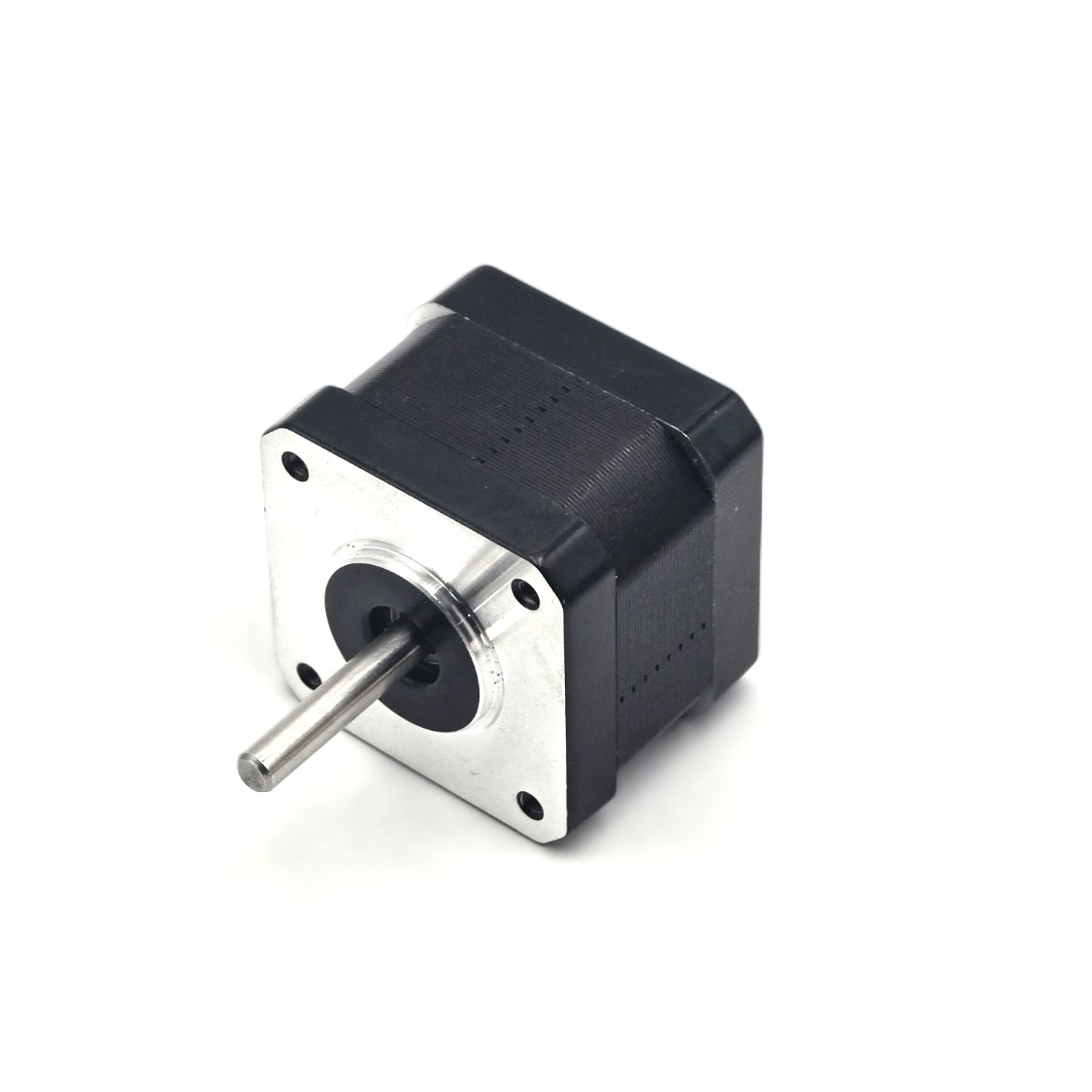

42HS34 2-Phase NEMA 17 Stepper Motor

Stepper motors are advanced electromechanical devices that convert electrical pulses into precise mechanical movement. Designed for accurate position and speed control, stepper motors are widely used in CNC machines, 3D printers, robotics, automation systems, laser cutters, and industrial machinery.

Unlike conventional motors, stepper motors move in fixed increments (steps), allowing precise rotation control without the need for complex feedback systems. This makes them a reliable and cost-effective solution for applications that require accurate positioning and repeatability.

Key Features of Stepper Motors:

• ✔ Precise Position Control – Accurate step movement with minimal positioning error

• ✔ Stable Speed Control – Speed directly controlled by input pulse frequency

• ✔ High Holding Torque – Maintains position firmly even when stopped

• ✔ Forward & Reverse Rotation – Easy direction control via pulse sequence

• ✔ Reliable Performance at Low Speeds – Smooth motion without gear reduction

• ✔ Long Service Life – Brushless design ensures durability and low maintenance
